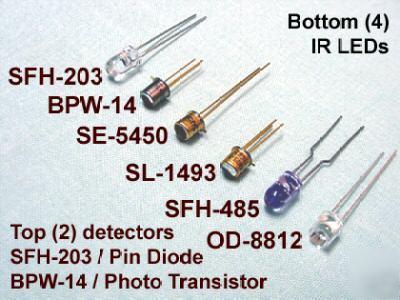

Infrared LEDs and Detectors, including a) (2) Very Fast SFH-203 PIN Photo-Diodes a b) Very Sensitive BPW-14 Photo-Transistor and c) a nice selection of Infrared emitting LED(s). The IR LEDs can be easily modulated with either a Digital or Analog signal. Snapshot of Detector and Emitter Specifications Please click on links for datasheets. * 400-100 nm Operating Range * Cathode: Short Lead [must be reverse biased] * 520-950 nm Operating Range * Lense - narrow 24° viewing angle * Negative: Tab; Positive: Case * 100 mA continuous, 400 mA pulsed * TO-46 for high power dissipation * Fast 0.7 µS rise / fall times tr / tf * Negative: Tab; Positive: Case * Negative: Tab; Positive: Case * TO-46 for high power dissipation * 100 mA continuous, 2.5 A pulsed * 100 mA continuous, 3 A pulsed Anything that can be radio-controlled, can be controlled by a wireless infrared system too, as long as it is kept in range and within sight. (Hint: Infrared control of model airplanes for example is not recommended!) Infrared control is an advantage in many applications because it cannot be easily jammed by strong radio signals from nearby transmitters, EMI from computers or noise from other RFI sources. Demonstration: A quick and easy but revealing experiment with the detector is to hook it up to an oscilloscope as shown in the schematic above and point your TV remote at it. You'll see what your TV sees in the 'dark.' Project Idea: Remote Control Repeater for your TV/Stereo control. Basically, you just need to feed the detector output to an Op-Amp or transistor amplifier driving an IR Emitter. Control your stereo around corners without having to place mirrors in strategic positions in the doorway. (You can't see infrared light, but mirrors and reflective surfaces work with infrared just the same as with visible light.) Make a pair of IR walkie-talkies that are immune to scanner eavesdropping. Be sure to add us to your Favorites List ! etronic e-tronic hamtronic qba tech 14 day Non-DOA, Good-on-Arrival Guarantee Untested, but NO JUNK or suspect parts PCB parts are thru-hole, NO SMD/SMT Manufacturers may vary from picture Pay by Postal Money Order REQUIRED. (all content is the responsibility of the poster) |
