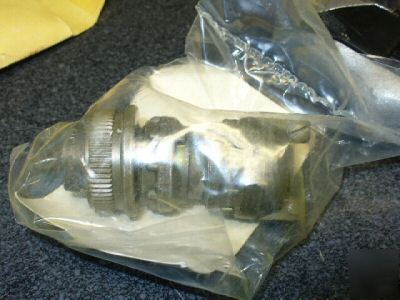

BODY STYLE - 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF BODY LENGTH - 2.312 INCHES MAXIMUM OVERALL DIAMETER - 1.343 INCHES MAXIMUM CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING THREADED DEVICE TYPE - COUPLING FACILITY THREAD SERIES DESIGNATOR - UNEF NOMINAL THREAD SIZE - 0.875 INCHES NOMINAL THREAD LENGTH - 0.344 INCHES CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP CABLE ENTRANCE DIAMETER - 0.406 INCHES MINIMUM SHELL MATERIAL - ALUMINUM ALLOY SHELL SURFACE TREATMENT - CADMIUM SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY CONTACT POSITION ARRANGEMENT STYLE - ACAD 14S-9 SINGLE MATING END INSERT MATERIAL - RUBBER SINGLE MATING END INCLUDED CONTACT QUANTITY - 2 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 TY 1,GRADE B MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 CL 1,GRADE B FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND SHOCK RESISTANT AND COLD RESISTANT AND HEAT RESISTANT AND EXPLOSION PROOF TEST DATA DOCUMENT - 81349-MIL-C-5015 SPECIFICATION SPECIFICATION/STANDARD DATA - 96906-MS3106 GOVERNMENT STANDARD III PRECIOUS MATERIAL AND WEIGHT - 0.002 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONACTC SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-5015 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3106F14S-9S (all content is the responsibility of the poster) |
