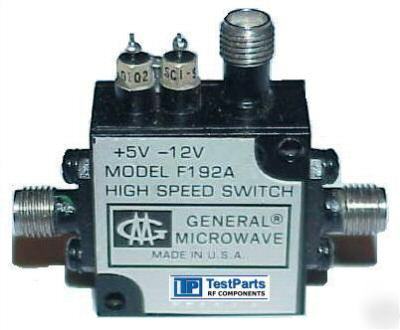

General Microwave / Herley F192A Non-Reflective Ultra-Broadband High-Speed SPST Switch The Model F192A is a high-speed non-reflective PIN diode SPST switch with integrated driver. Operating over the instantaneous frequency range from 0.2 to 18 GHz, it provides a minimum isolation of 80 dB from 0.5 to 18 GHz, and 70 dB below 0.5 GHz. The rf design consists of an arrangement of shunt and series diodes in a microstrip integrated circuit transmission line. The currents required to switch the unit ON or OFF and simultaneously maintain a bilateral 50-ohm impedance match in both states are provided by the integrated driver, which is controlled by an external logic signal. * SMA Male Connectors (In / Out) * Condition: Used / Working / Stock Photo * Listing is for one piece. More than one may be shown to better illustrate. * The items we sell are either new old stock (NOS) or used and are not considered to be ROHS compatible or compliant. (all content is the responsibility of the poster) |
