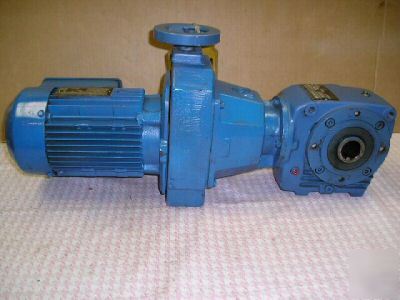

Variable speed SEW-Eurodrive Inc. USA, Type- 8A42D14DT80N4 (or SA42….), S.O.- 87034042 2 (04.07.001), In- 460-2260 RPM, Out- 21-101 RPM, Torque- 410 lb. In., Ratio- 22.28, Service Class- 1.0, Mtg. Pos.- H3. Shaft opening is 1.25", keyed. Dual sided, shaft can be inserted from either side. On each side there are 4 threaded holes for securing a mounting bracket. Drive comes with mounting bracket as shown in one of the pictures. There are also 2 threaded holes on each side at the top of the drive for angle type mounting brackets.. Speed is adjustable by turning the hand wheel on top of the drive, which causes the motor to slide up/down. On the side is a scale 0-100 to indicate position of the drive. The motor is SEW-Eurodrive, TEFC 3 phase, Type- DF14DT80N4, S.O.- 87034042 2 (04.07.001), 230/460V, 3.9/1.95 Amps, 60 Hz, Ins. Cl.- B, Design- B, 1 Hp Max, RPM- 460-2260, S.F.- 1.0, Duty- Cont. Overall dimensions- 24" x 8" wide x 11" high. Drive is clean and in good working condition. For questions please send email to: deidreware@oklahomaselltoday.com Click to view supersized image Click to view supersized image Click to view supersized image Click to view supersized image Click to view supersized image Smart Services for Smart Sellers (all content is the responsibility of the poster) |
