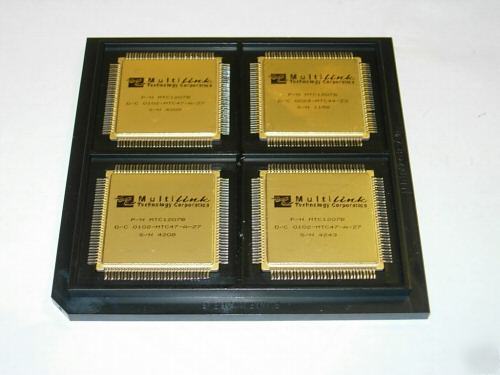

MultiLink MTC1207B 10 Gb/s 16 to 1 multiplexers (MUX) Product Name: MTC1207B Integrated Circuits Product Description: • 16 to 1 multiplexer (MUX) • Reduced power consumption (2.5 W) • Large output data amplitude (800 mVpp ) • Integrated Clock Multiplier Unit (CMU) • Low Jitter VCO with external loop filter • Jitter performance complies with SONET/SDHstandards Applications • Telecom transmission systems • SONET OC-192 and SDH STM-64 equipment • Forward Error Correction data rates supported (10.664 Gb/s option) The MTC1207A, and 1207B are reduced power 10 Gb/s 16 to 1 multiplexers (MUX) with an integrated clock multiplier unit for use in SONET OC-192, SDH STM-64, and Forward Error Correction (FEC) systems. The MTC1207A accepts 16 different data channels at 622 Mb/s and combines them into a single 9.953 Gb/s serial data stream suitable for transmission over high speed fiberoptic networks. The MTC1207B accepts differential data at 666.5 Mb/s and is optimized for use in systems which employ FEC encoding at 10.664 Gb/s. For each of the two devices, the minimum data output amplitude is 800 mV pp , allowing direct connection to an external modulator driver such as the MTC5515. An on-chip Phase/Frequency Detector (PFD) and precision Voltage Controlled Oscillator (VCO) are used in combination with an external op-amp loop filter to convert the 622 or 666.5 MHz reference clock, supplied by the host system, into a low jitter 9.953 or 10.664 GHz clock output. The 10 Gb/s data output is retimed with respect to the high speed clock using an internal D flip flop (DFF). All data and clock I/O are provided with on-chip 50 Ohm transmission line terminations to minimize the external component count. The MTC1207 series devices are provided in a 128 pin quad flat pack (QFP) and operate from -5.0 V and -3.5 V power supplies. The circuitry was designed for use in equipment which is required to comply with Bellcore, ANSI, and ITU-T international standards for SONET and SDH systems. MultiLink MTC1207B 10 Gb/s 16 to 1 multiplexers (MUX) x 4 in One Anti-static Pack * 10 day DOA Guarantee by BoteQ.com * Local pick up is not offered. (all content is the responsibility of the poster) |
