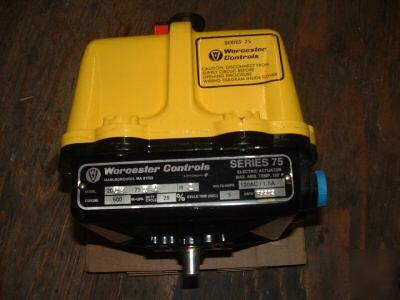

Worcester 75 Series Electric Actuator 20-CM-75-XC-R-1 Series 75 Electric Actuators are used throughout the industrial world for on/off, throttling, variable cycle and any analog or digital control. One of the most reliable actuators on the market, the Series 75 is lightweight, compact and powerful. Its split phase capacitor AC reversing motor or DC motor drives a valve through a sealed, permanently lubricated gear train which offers lifetime, maintenance-free operation. The Series 75 is available in eight sizes and produces torque to 3000 in-lbs. Housings are designed to TYPE 1 General Purpose, TYPE 4 Watertight, and TYPE 7, Class I, Div. 1 and 2, Group C, D and TYPE 9, Class II, Division 1 and 2, Group E, F, and G. A combined location TYPE 4, 4X, 7 and 9 enclosure is also available. Series 75 actuators may be used on Worcester Controls complete line of ball valves, other quarter-turn valves of devices requiring rotary operators. Moreover, their ability to provide power in both directions through selected arcs from 20 degrees through 300 makes them ideal for control of heating, ventilating and air conditioning duct systems and automatic, remotely operated equipment. * 120/240VAC or 12/24VDC operation * On/of, Throttling, Position, and Process Control * Analog/Digital Position Control Inputs C - CLC Module for cycle length control M - Mechanical Brake (AC Only) X - Hazardous Locations TYPE 7, Class 1, Div. 1, Group C, D TYPE 9, Class 2, Div. 1, Group E, F, G Sizes 10, 12,15,20, 22 (all content is the responsibility of the poster) |
