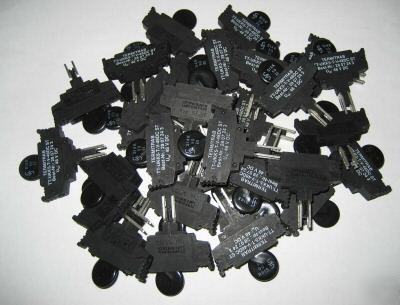

Phoenix Contact Termitrab TT-UKK5-T-V-48DC ST Qty: 30 NEW! * Model: TT-UKK5-T-V-48DC ST Inflammability class acc. to UL 94 V2 Standards for air and creepage distances VDE 0110-1 Ambient temperature (operation) -40 °C ... 60 °C Design Single-level terminal block Max. operating voltage Umax 65 V DC Arrester rated voltage Uc 65 V DC Arrester rated voltage Uc (Core-Core) 65 V DC Arrester rated voltage Uc (Core-Earth) 50 V DC Nominal current IN 26 A (40°C) Operating effective current IC at UC = 70 µA Nominal discharge surge current In (8/20) µs (Core-Core) 1 kA Max. discharge surge current Imax (8/20) µs maximum (Core-Core) 4.5 kA Nominal power pulse current Ian (10/1000) µs (Core-Core) 35 A Residual voltage at In, (conductor-conductor) = 200 V Response time tA (Core-Core) = 25 ns Capacity (Core-Core) Typ. 1.8 nF Surge carrying capacity in acc. with IEC 61643-21 (Core-Core) C2 (2 kV / 1 kA) Type of connection Screw connection (in connection with the base element) Connection type IN TERMITRAB plug-in system Connection type OUT TERMITRAB plug-in system Conductor cross section stranded min. 0.2 mm2 Conductor cross section stranded max. 4 mm2 Conductor cross section solid min. 0.2 mm2 Conductor cross section solid max. 4 mm2 Conductor cross section AWG/kcmil min. 24 Conductor cross section AWG/kcmil max 12 Connection, protective circuit Standards/regulations IEC 61643-21 Warranty Return Information: No Returns (all content is the responsibility of the poster) |
Alberta.chambers@oklahomaselltoday.com (Alberta Chambers) for more information. All emails will be forwarded to the poster's actual email address.
