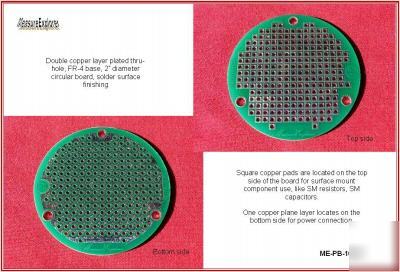

MeasureExplorer product: ME-PB-103RI, 2" diameter circular double layer prototype board Double copper layer plated thru-hole, FR-4 base, 2†diameter circular board, solder surface finishing Square copper pads are located on the top side of the board for surface mount component use, like SM resistors, SM capacitors. One copper plane layer locates on the bottom side for power connection. Plated through holes with diameter 39mil and 0.1 inch grid Round shape with diameter 2.0 inch 3 4-40 plated screw holes are located Mechanically compatible with other ME prototype boards (all content is the responsibility of the poster) |
