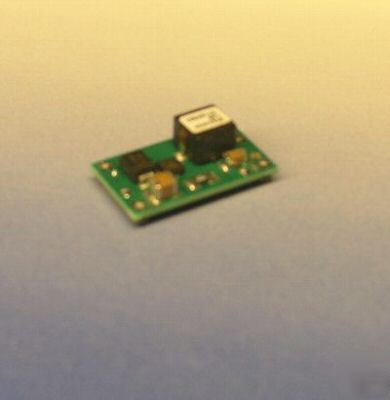

Complete Step-UP Switching Regulator Module 2.9-5.5V IN, 5-15V OUT , 12W Output (2.4A max) Tiny module is just 0.87" x 0.5" The smallest, lightest, most efficient way to get a regulated power to a circuit. Perfect for portable equipment using either 3 or 4 cell Nickel chemistry batteries or 1 Lithium-Ion battery. The PTN04050C is a 4-pin boost-voltage regulator, smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics. The case-less, double-sided package, also exhibits improved thermal characteristics, and is RoHS compliant. Operating over a 2.95 V to 5.5 V input range, the PTN04050C provides high-efficiency, step-up voltage conversion for loads of up to 12 W. The output voltage is set using a single external resistor. The PTN04050C may be set to any value within the range, 5 V to 15 V. The output voltage of the PTN04050C can be as little as 0.5 V higher than the input, allowing an output voltage of 5 V, with an input voltage of 4.5 V. It is the ideal way to implement Lithium-ion power sources in portable equipment, since these batteries vary greatly in output voltage over their discharge cycle, and regulation becomes a must. US: $3.95 International: $5.90 Lowest cost option. 2-nd item: S&H 75% less than first (or 25% of first) items 3-5: S&H 80% less than first (or 20% of first) items 6-10: S&H 90% less than first (or 10% of first) Be sure to add me to your favorites list! (all content is the responsibility of the poster) |
