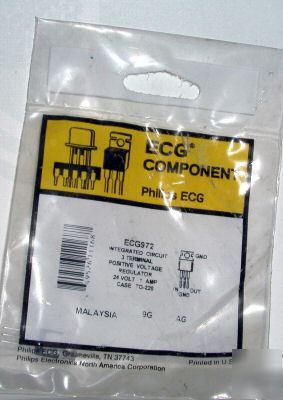

3–Terminal Positive Voltage Regulator, 24V The NTE972 fixed–voltage regulator is a monolithic integrated circuit in a TO220 type package designed for use in a wide variety of applications including local, on–card regulation. This regulator employs internal current limiting, thermal shutdown, and safe–area compensation. With adequate heatsinking it can deliver output currents in excess of 1.0 ampere. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents. Output Current in Excess of 1.0 Ampere No External Components Reguired Internal Thermal Overload Protection Internal Short–Circuit Current Limiting Output Transistor Safe–Area Compensation You can find the Spec sheet Here. (all content is the responsibility of the poster) |
