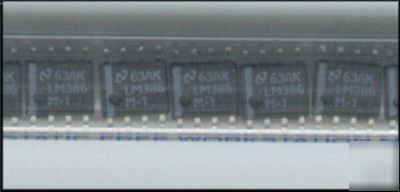

Now over 1,000 items in our Store! Low Voltage Audio Power Amplifier Surface Mount The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation. Wide supply voltage range: 4V–12V or 5V–18V Low quiescent current drain: 4mA Self-centering output quiescent voltage Low distortion: 0.2% (AV = 20, VS = 6V, RL = 8W, PO = 125mW, f = 1kHz) Portable tape player amplifiers for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! Please Note: I am selling these items individually. The picture shows several parts. (all content is the responsibility of the poster) |
