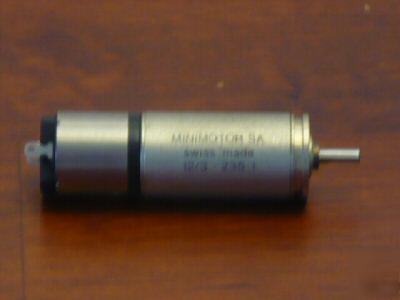

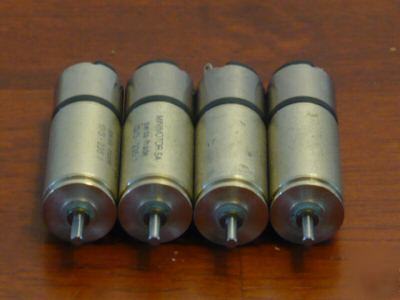

21 RPM Faulhaber, #1212E006G, (Motor) with #12/3 Gearbox. Precision Swiss Motor with screw-on removable grearhead. Both have sleeve bearings. Gearhead ratio is 235:1 rated for operation on 6 VDC. Motor no-load speed is 16,000 rpm No-load current is 7 mA. Motor stall torque is 0.166 rpm. Torque constant is 0.497 oz-in/A. Motor has precious metal commutaion. No load output speed through gearbox is 65 rpm @ 1 mA approx. With 10 oz-in load shaft output speed approx. 21 rpm. Shaft: 2mm dia x 5.9 mm long with flat. Solder tab style ears for electrical connections. Servo style front mounting flange. Dimensions: (motor and gearbox) 12mm dia X 37 mm long (excluding shaft). 21 RPM Fualhaber DC Gearhead Motors (all content is the responsibility of the poster) |
