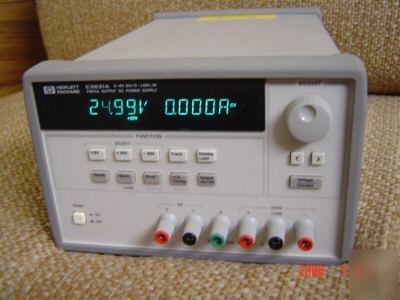

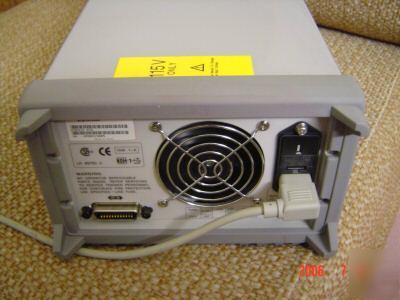

HP / Agilent E3631A 80W Triple-Output DC Power Supply, Tested! This is a used HP/Agilent E3631A Triple Output DC Power Supply for 0~6V/5A, 0~+25V/1A. This unit was pulling from a working environment system and tested to work functionally. This power supply has GP-IB and RS 232 interfaces. Output: 0 to +25V/1A, +6V/5A; 0 to 1 A Programming Accuracy at 25°C ±5°C Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA Ripple & Noise (20 Hz to 20 MHz) Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms Readback Accuracy at 25°C ±5°C Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA Operating for 115VAC 47-63Hz and selectable to 230VAC 47-63Hz. With GPIB/IEEE 488.2 and RS 232 interfaces http://www.home.agilent.com/agilent/product.jspx?nid=-536902290.384004.00&cc=US&lc=eng CA sales tax of 8.25% for Californica residents. (all content is the responsibility of the poster) |
lavonne-vincent@oklahomaselltoday.com (Lavonne Vincent) for more information. All emails will be forwarded to the poster's actual email address.
