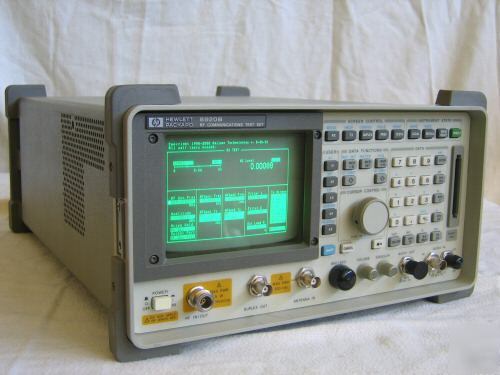

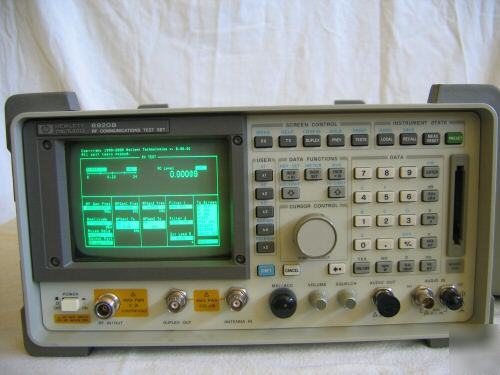

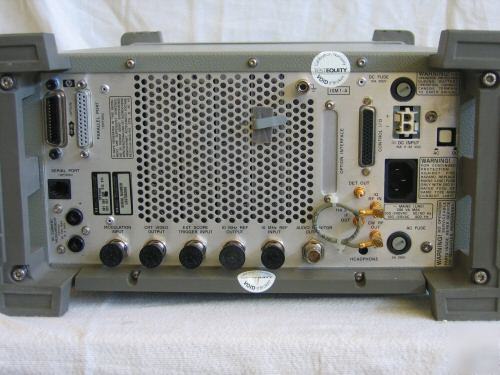

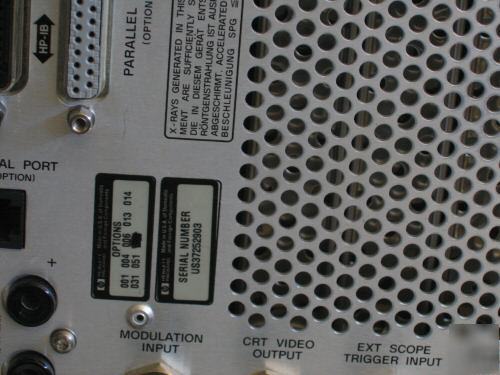

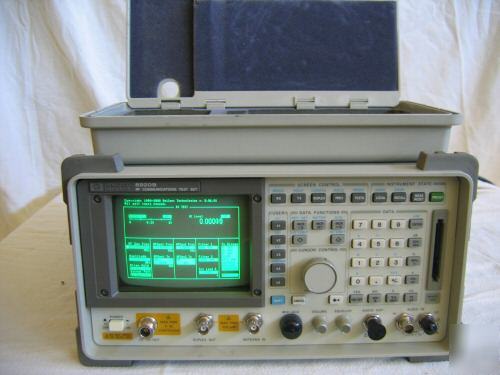

HP 8920B RF Communication Test Set w/ Options * Description: The HP (Agilent) 8920B is a full-function test set based upon the HP 8920A design but with increased measurement speed, accuracy, and larger user memory (928 kbytes standard). The HP 8920B uses PCMCIA memory cards for data storage and radio test programs. The 8920B has the functionality, speed, and accuracy for testing land mobile radios, cellular telephones and other communications system while improving throughput and quality in manufacturing. Along with speed enhancement, the HP 8920B has signal generator level accuracy or +/-1 dB at the duplex port and power measurement accuracy or +/- 5% for levels from 1 mW to 60 watts at the RF In/Out port. Residual FM is less than 7 Hz rms, CCITT. For audio tests, the variable frequency notch filter from 300 Hz to 10 kHz is standard. The FM deviation accuracy is 3.5% and FM distortion less than 0.5%. HP-IB, RS232, and Centronics ports are standard. * More than 20 complete instruments * Frequency range 250 kHz to 1000 MHz * Accuracy of stand-alone instruments * Flash ROM updates from front panel * Optional spectrum analyzer, tracking generator and adjacent channel power meter * Built-in IBASIC computer with PCMCIA format memory cards * Call processing subsystem for simplified cellular test and troubleshooting * Cosmetic Condition: Very Good * Working Condition: Tested Good. * Other Comments / Notes:This unit is equipped with the following options: * 001: High Stability Timebase * 004: Tone / Digital Signaling * 006: 10 W to 50 Microwatt Power Measurement Range * 013: C-Message Weighting Filter * 014: 6 kHz Bandpass Filter * 031: Deletes Handle and Cover * 051: Dual-mode - Front and Rear Connectors * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (all content is the responsibility of the poster) |
