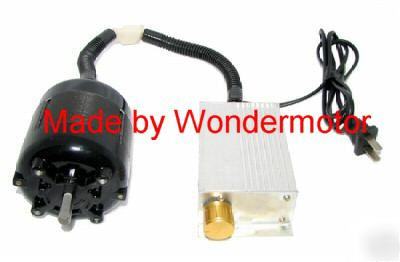

WE NOW INCLUDE 4 METRIC SCREWS THAT ARE FOR THE FACE-MOUNT OF THIS MOTOR. This is a compact, single-phase, 80W, 60HZ, 115VAC induction motor with a speed-control box & Gold Knob. Speed range varies depending on the shaft load. Motor's speed at no load is 1760 RPM. Rotation is Clockwise when viewing from the shaft end. The controller has a standard power cord so user can run the motor right away right out of box. This motor is 75mm(3") in diameter and 92mm(3.6") in axial length less shaft. Connected overall cable length between the controller and the motor is 356mm(14"), and the power cord length is 1270mm(50"). The motor features 4 bolt holes for a front-mount installation. The diameter of the bolt-hole pattern is 55mm(2.2"). Shaft is 8mm(0.31") in diameter and 19mm(0.75") long with a flat (D shaft). Ideal for home projects/experiments.
